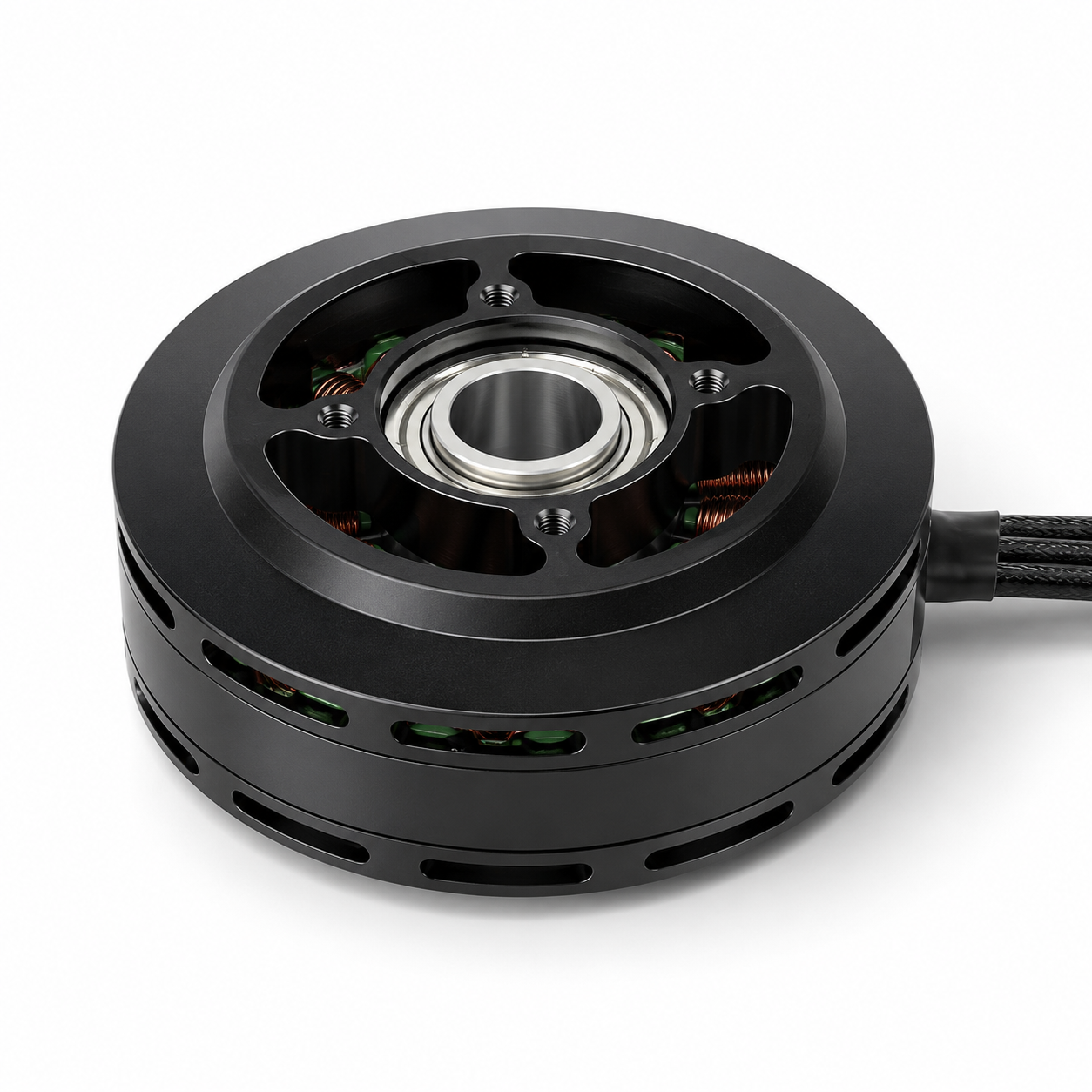

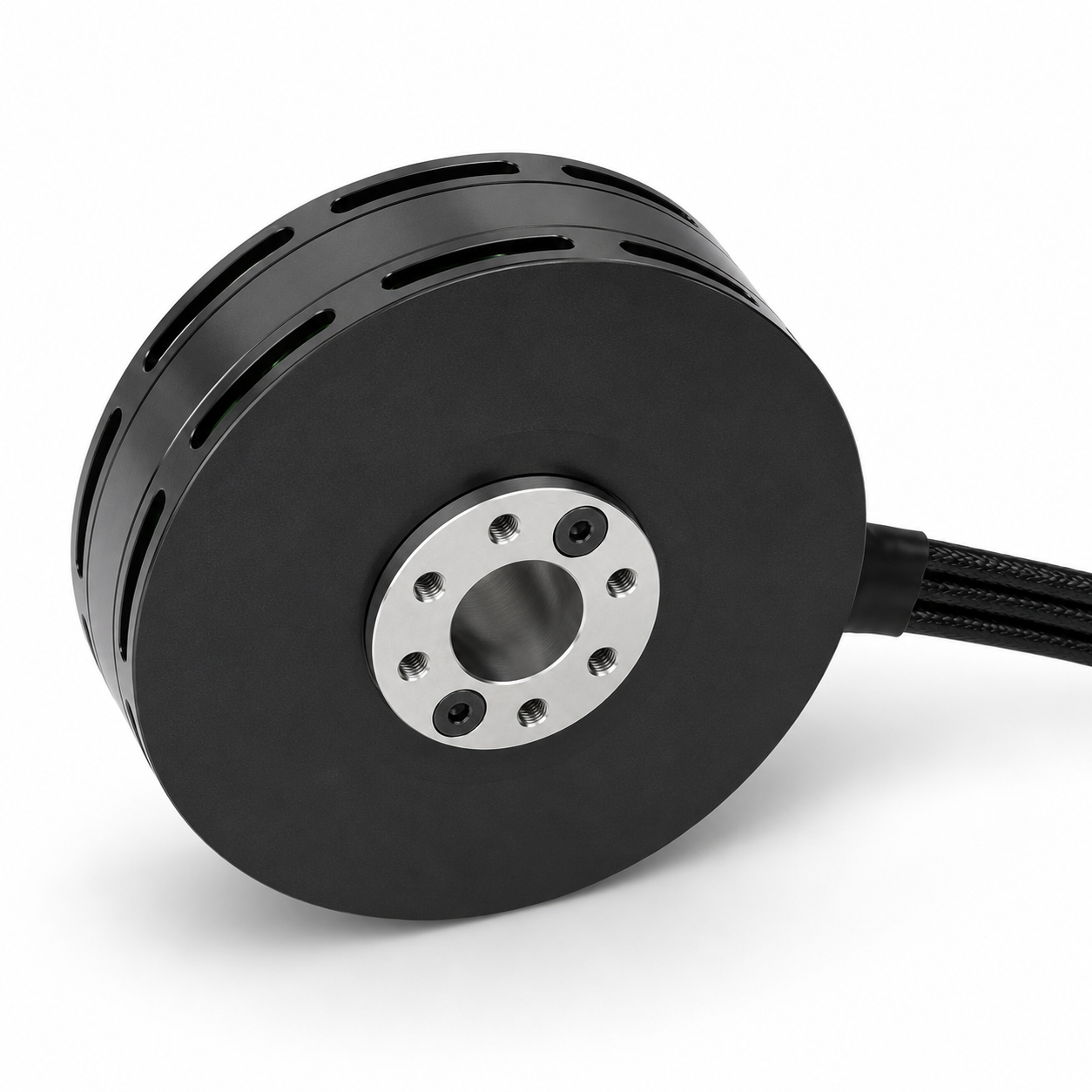

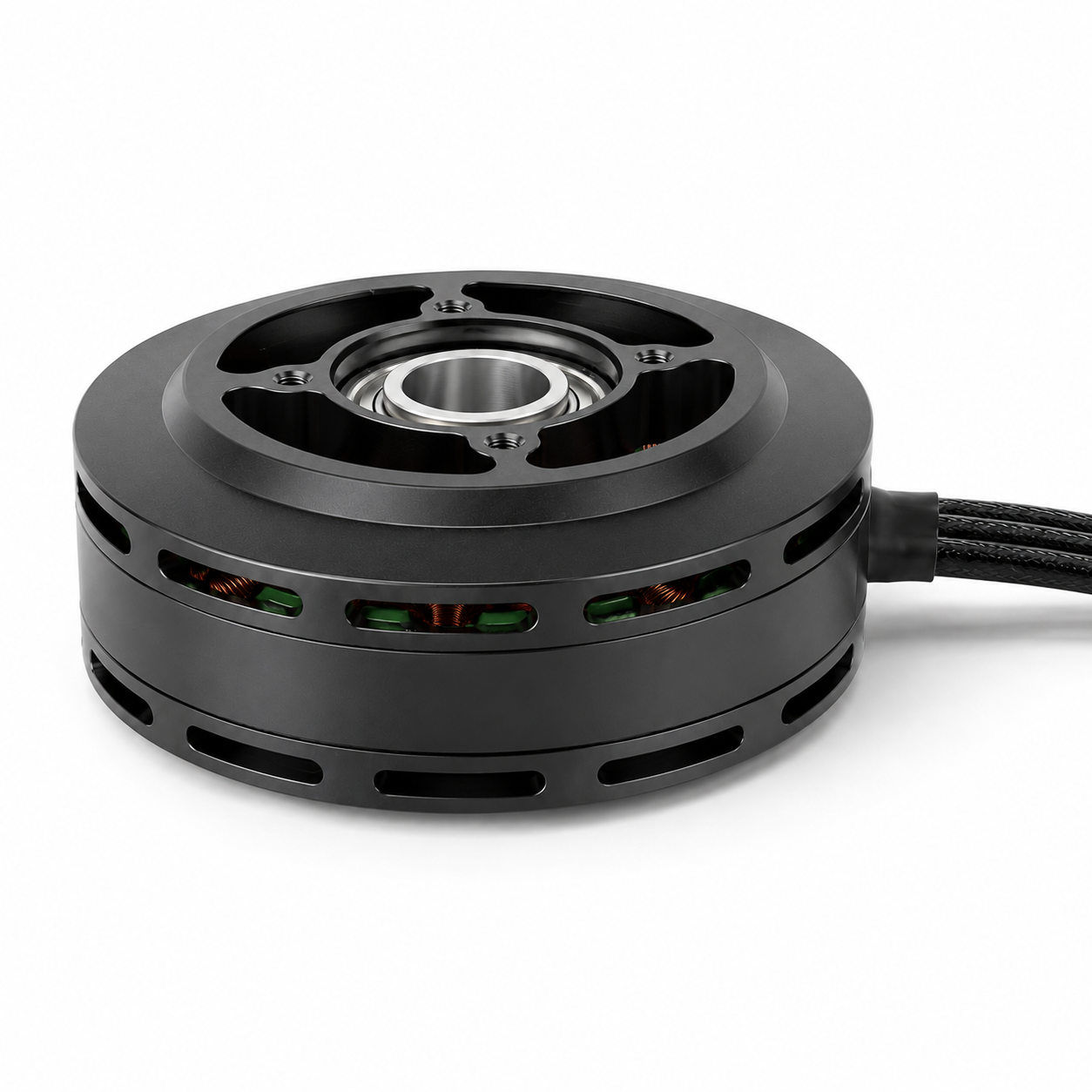

LETUMOTOR 8110 BLDC Motor for Heavy-Lift & Industrial Drones – Brushless High Power & Reliable

Built for the 48V Professional Era. The LETUMOTOR 8110-110KV is a precision-engineered brushless motor for industrial UAV platforms — 36N42P, IP45, ≤15mg balance, and 6802 bearings for smooth, stable, efficient flight.

  • Motor Size: Ø87.1 x H28.95 mm

  • KV: 110 | Voltage: 48V

  • Configuration: 36N42P

  • Dynamic Balance: ≤15mg

  • Bearing: 6802

  • Mount: 4x M4-D20 (Prop) / 4x M4-D23 & D36 (Motor)

Contact our engineering team with your requirements for a tailored solution and volume pricing.

This product is currently out of stock and unavailable.

SKU: N/A Category:

Description

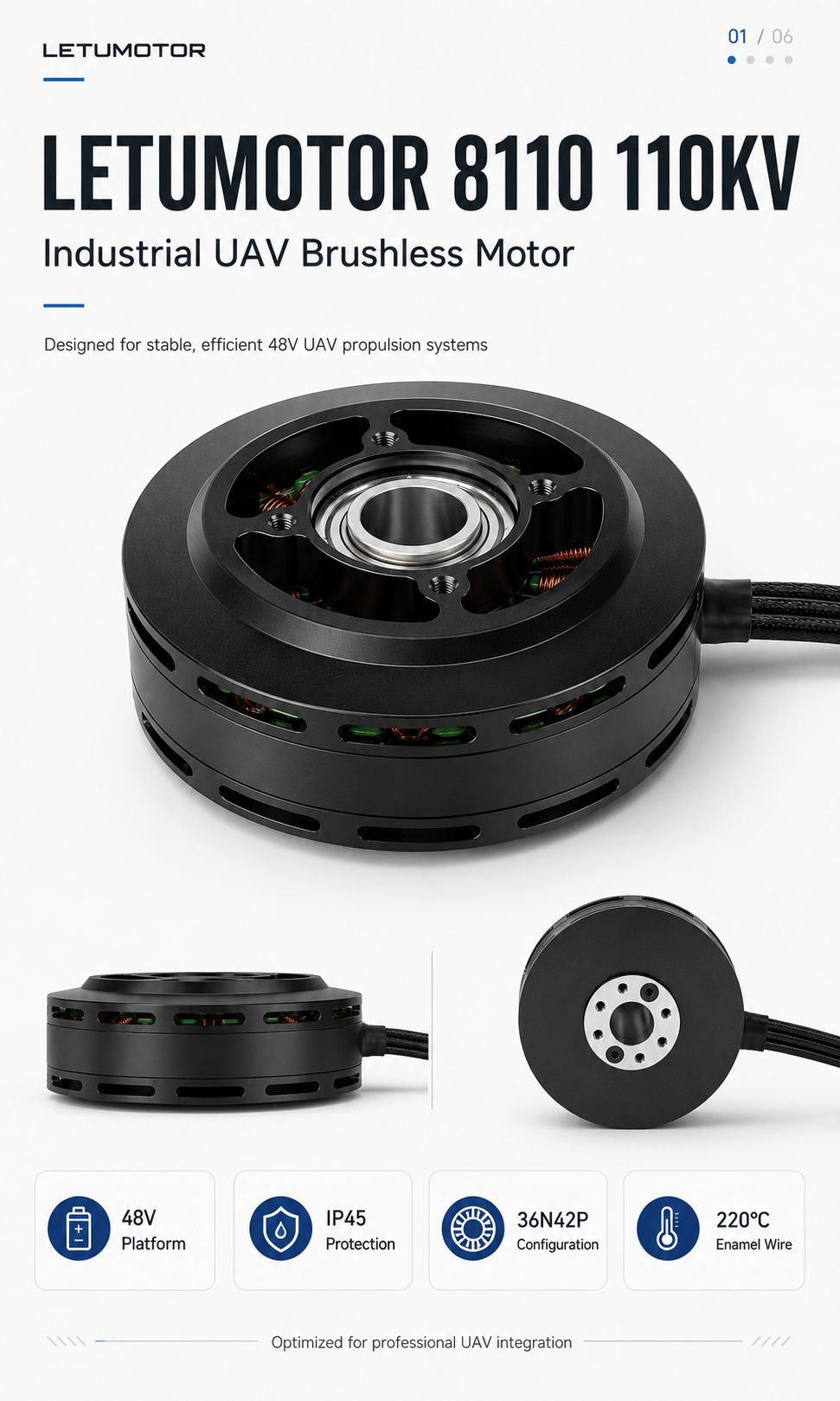

Industrial UAV brushless motor — 48V, 36N42P, IP45 protection, 220°C enamel wire, optimized for stable and efficient professional UAV propulsion systemsIndustrial UAV motor materials and reliability — 220°C enamel wire, 180°C magnet grade, AC500V dielectric withstand, 6802 precision bearings, engineered for thermal stability, electrical safety, and long-term UAV operationProfessional UAV motor structural engineering — IP45 sealed, optimized ventilation, high-temp direct leads, ≤15mg balanced rotor, AC500V dielectric strength, 36N42P high torque density, designed for stable long-term aerial operationIndustrial UAV motor integration and mounting specs — 87.1x28.95mm, 4xM4-D20 prop mount, 4xM4-D23/D36 motor mount, 90mm enameled wire direct leads, 48V, IP45, 36N42P, 220°C, designed for fast and reliable UAV system assemblyLETUMOTOR 8110-110KV industrial UAV brushless motor specifications — 87.1x28.95mm, 50x10mm stator, 48V, 110KV, 36N42P, IP45, 220°C enamel wire, 180°C magnet, AC500V insulation, ≤15mg dynamic balance, 6802 bearings, 4xM4-D20 prop mount, 4xM4-D23/D36 motor mount, 90mm direct leads

Built for the 48V Professional Era

The LETUMOTOR 8110-110KV is a precision-engineered brushless motor purpose-built for 48V industrial UAV platforms. With a high-density 36N42P configuration, AC500V insulation, and a robust IP45-rated structure, it delivers the consistent, efficient, and stable thrust that professional multi-rotor applications demand.

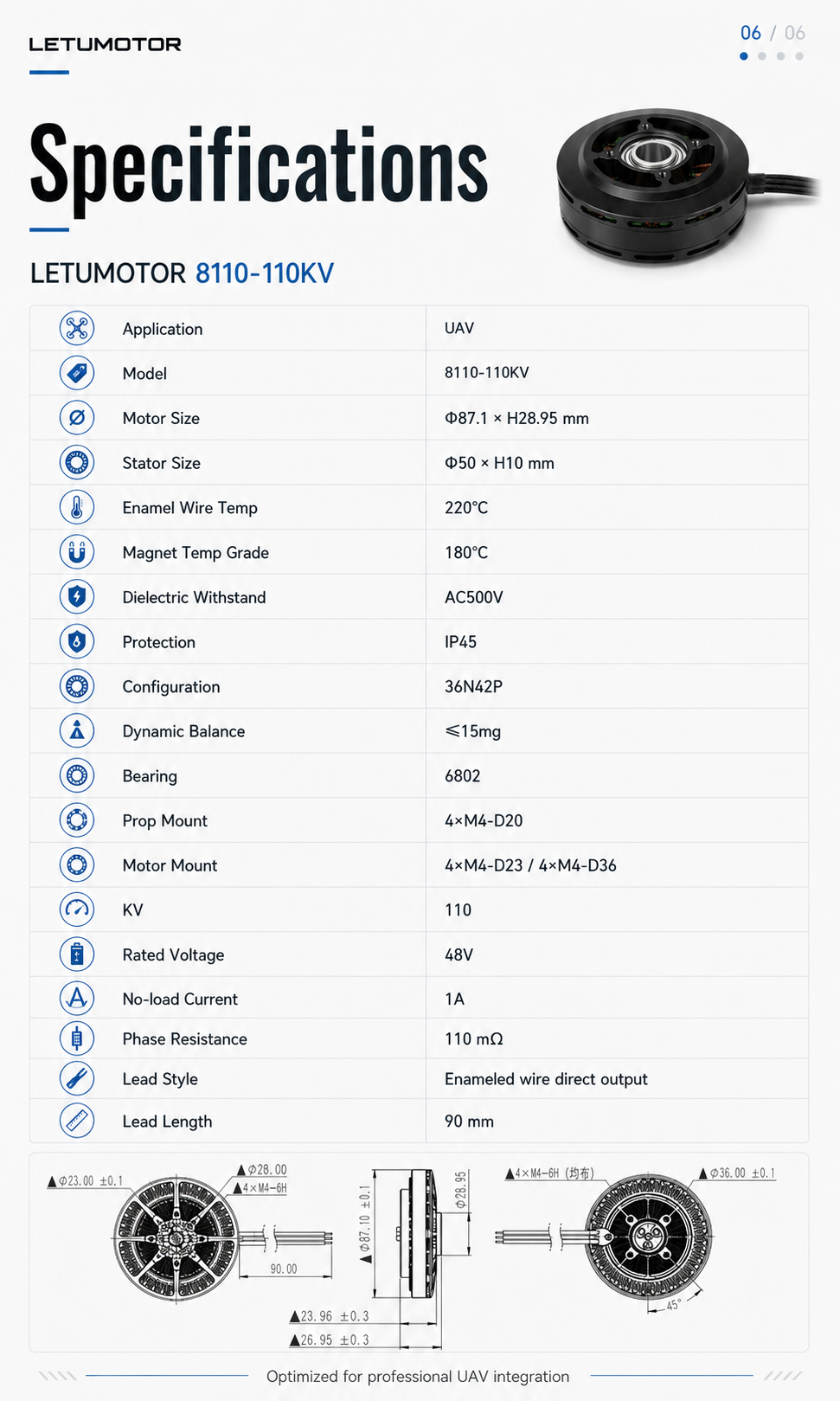

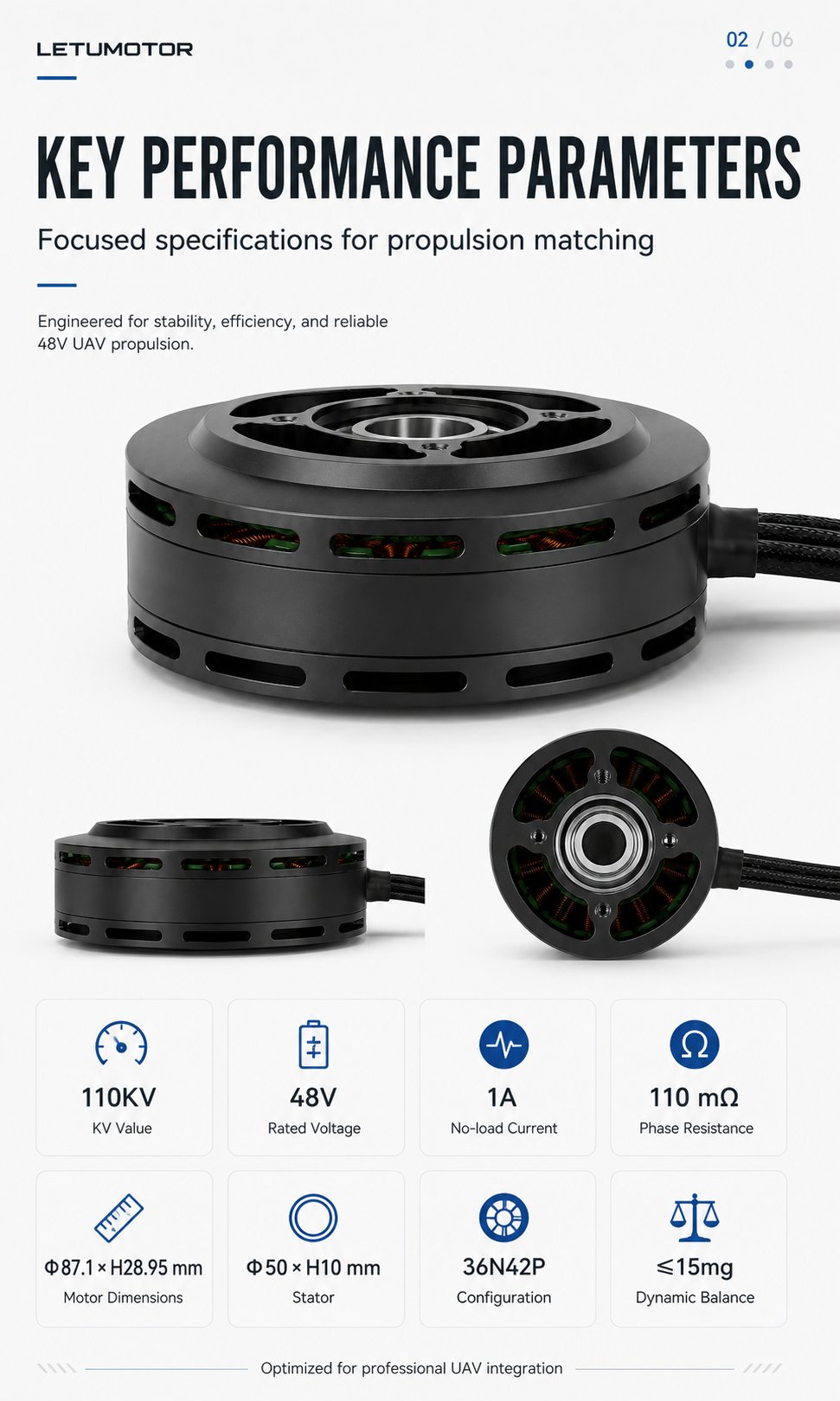

Key Specifications

Parameter Value
Model LETUMOTOR 8110-110KV
Motor Size Ø87.1 x H28.95 mm
Stator Size Ø50 x H10 mm
KV Rating 110
Rated Voltage 48V
No-load Current 1A
Phase Resistance 110 mΩ
Configuration 36N42P
Dynamic Balance ≤15mg
Bearing 6802DD
Prop Mount 4x M4-D20
Motor Mount 4x M4-D23 / 4x M4-D36
Lead Style Enameled wire, direct output
Lead Length 90 mm

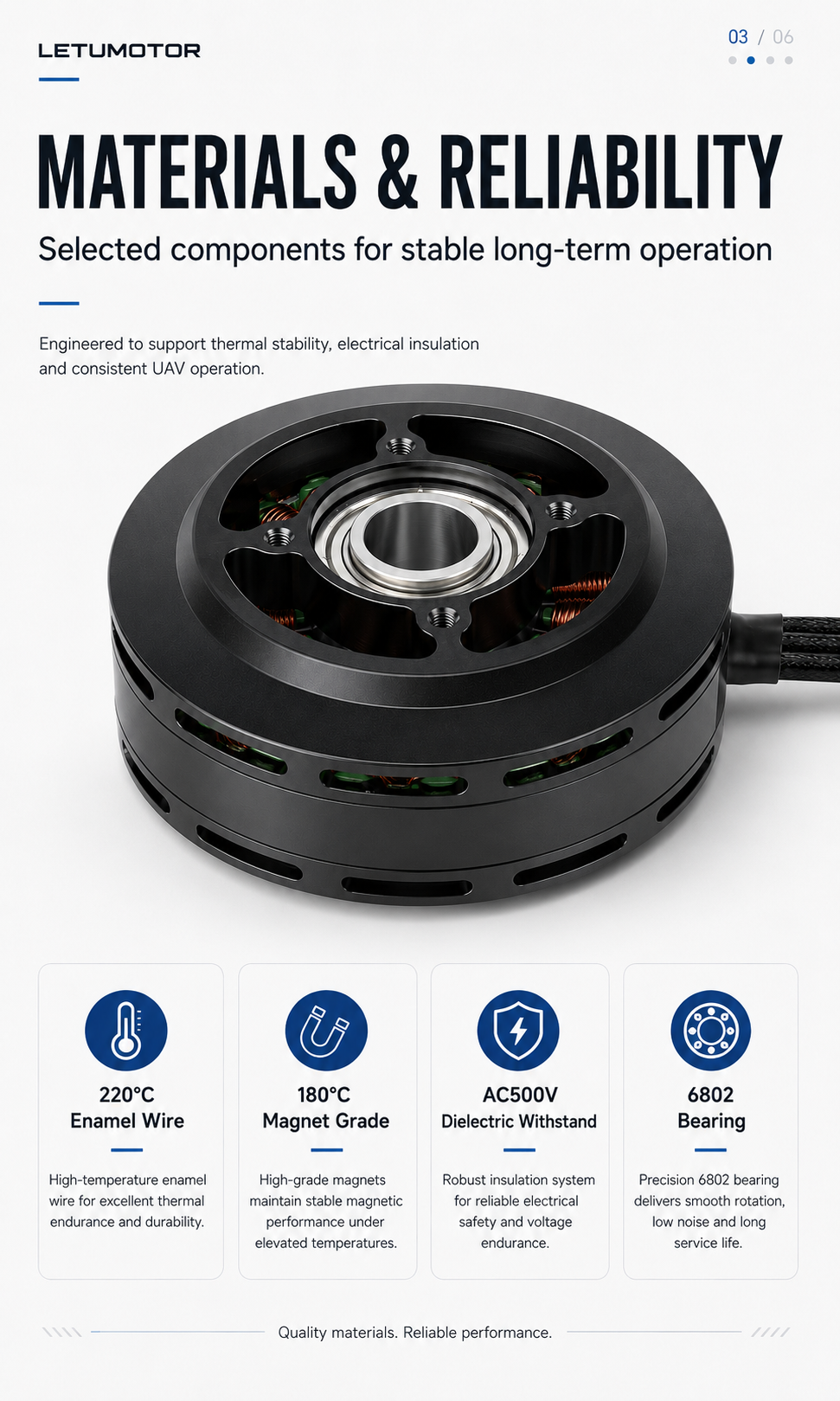

Engineered for Industrial Reliability

  • 220°C Enamel Wire & 180°C Magnet Grade: High-temperature materials keep performance stable under sustained heavy loads and demanding environmental conditions.

  • AC500V Dielectric Withstand: Robust insulation ensures safe and reliable electrical operation at elevated voltages.

  • IP45 Protection: Guards against dust ingress and water splashes, making this motor suitable for outdoor and field-based UAV operations.

  • ≤15mg Dynamic Balance: Precision balancing minimizes vibration, improves flight stability, and extends the life of surrounding airframe components.

  • 6802 Bearings: High-quality bearings deliver smooth, low-noise rotation across the throttle range.

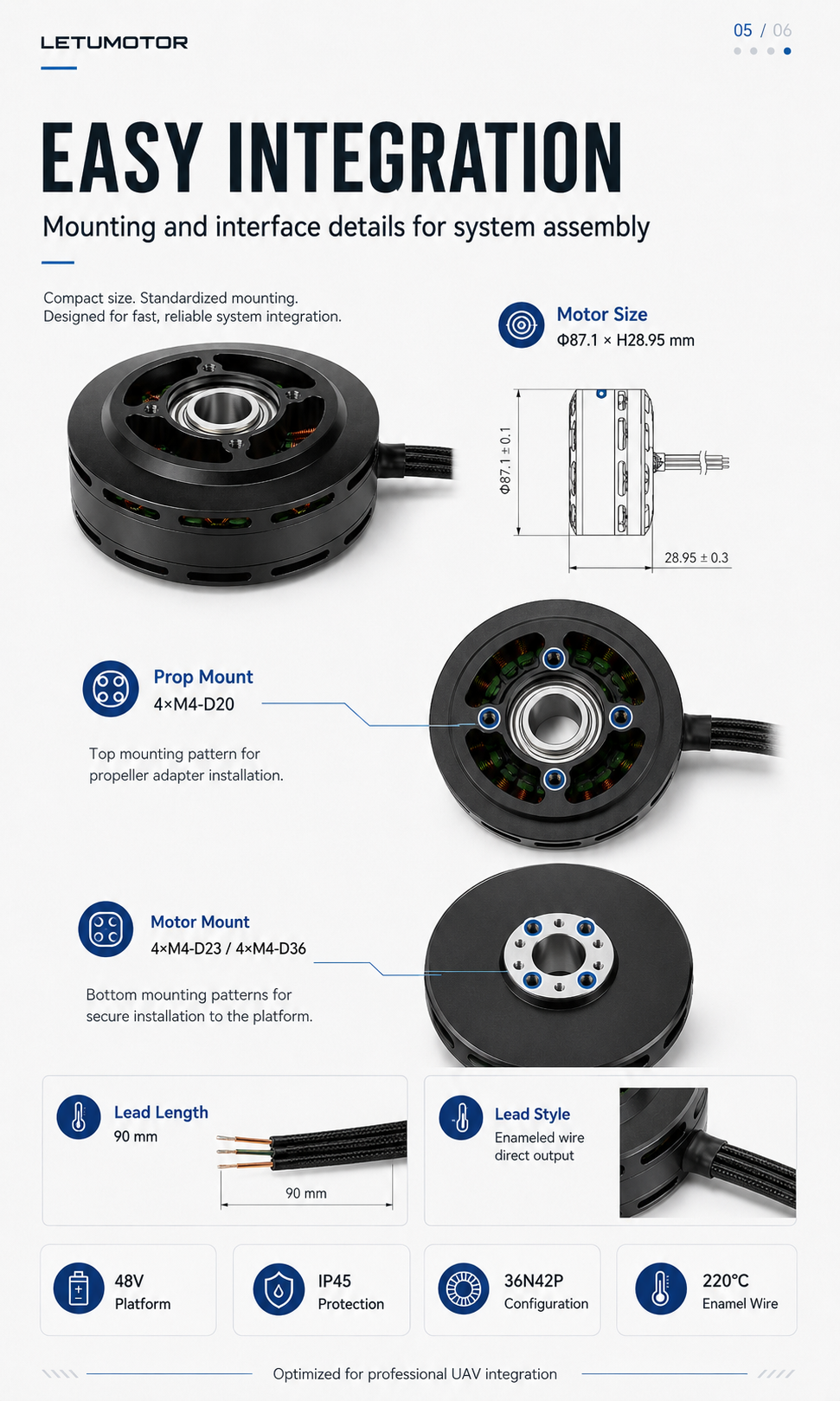

Designed for Professional Integration

  • Compact Pancake Form Factor: Ø87.1 x 28.95 mm slim profile easily fits into space-constrained multi-rotor builds and coaxial setups.

  • Dual Motor Mount Patterns: 4x M4-D23 and 4x M4-D36 mounting options provide maximum compatibility with standard and custom airframes.

  • Direct Lead Output: 90 mm enameled wire leads offer clean, secure electrical connections without additional connectors or adapters.

Ideal Applications

  • Heavy-lift industrial multi-rotors

  • Agricultural spraying and seeding drones

  • Aerial surveying and mapping platforms

  • Cargo delivery and logistics UAVs

  • Professional cinematography lifters

Customization & Bulk Orders

We understand that off-the-shelf specs don’t fit every project.

Available customizations include:

  • Custom KV winding

  • Shaft diameter and length modifications

  • Mounting pattern adjustments

  • Lead length and connector type

  • Bell housing color and laser-engraved logo

Contact our engineering team with your requirements for a tailored solution and volume pricing.

Additional information

Series

8110 STANDARD, 8110 PRO, 8110 MAX
